Comprehensive Technical Characteristics of Inverter
Input-output Characteristics:
Input Voltage Range: 380/220V±15%
Input Frequency Range: 47-63Hz
Output Voltage Range: 0-rated input voltage
Output Frequency Range: 0-400Hz
Peripheral Interface Characteristics
Programmable Digital Input: 6 channel input
Programmable Analog Input: 0-10V input, FI: 0-20mA or 4-20mA input
Open Collector Output: 1 channel output input
Relay Output: 1 channel output
Analog Output: 1 channel output, optional 0-20mA or 0-10V
Technical Performance Characteristics
Control Mode: SVC, V/F direct torque control
Overload Capacity: 150% rated current 60s; 180% rated current 10s
Starting Torque: SVC: 0.5Hz/150% (SVC)
Speed Regulation Ratio: SVC: 1:100
Speed Control Accuracy: SVC; ±0.5% maximum speed
Carrier Frequency: 0.5k-15.0kHz
Name rules:

I5300E_closed_loop_inverter_name_rules
Specification:
1.Applies to the driving control of permanent-magnet synchronous motor and asynchronous motor, possessing different kinds of rotary encoder interfaces;
2.Self-tuning function of motor parameters, including static tuning and full tuning;
3.Quick startup of curve processing, multi-stage S curve settings and 4-stage acceleration and deceleration time settings ensure the sense of comfort during the running of the elevator;
4.Simple and practical battery running function, the input of 48V power supply can complete self-help when power is off;
5.Enable inspection、brake contactor control, output contactor control, forced deceleration judgment, over speed testing, speed deviation testing, advanced door open, contact conglutination testing, motor overheat testing, startup pre-torque compensation and other elevator special functions make elevator control easier;
6.The unique one-button design on the operation panel make complicated keyboard operation easy;
7.Built-in DC reactor and braking unit improve output power factor of the system and reduce the cost of outside components of the electrical system;
8.The whole series of independent duct design, professional lightning protection design, professional manufacture platform and advanced processs control ensure the quality of I5300 specialized Elevator inverter;

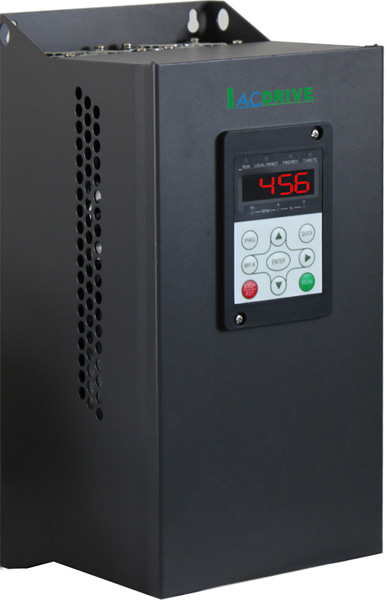

Main parameters of the I5300 Elevator inverter (IP model included)
Model | Capacity KW | Input current | Output current | Adoptable motor kW |
A | A | |||
3-phase 380V range:-15%~20% | ||||
I5300-4002 | 4 | 5.8 | 5.1 | 2.2 |
I5300-4003 | 5.9 | 10.5 | 9 | 3.7 |
I5300-4005 | 8.9 | 14.6 | 13 | 5.5 |
I5300-4007 | 11 | 20.5 | 18 | 7.5 |
I5300-4011 | 17 | 29 | 27 | 11 |
I5300-4015 | 21 | 36 | 33 | 15 |
I5300-4018 | 24 | 41 | 39 | 18.5 |
I5300-4022 | 30 | 49.5 | 48 | 22 |
I5300-4030 | 40 | 62 | 60 | 30 |
I5300-4037 | 57 | 77 | 75 | 37 |
I5300-4045 | 69 | 93 | 91 | 45 |
